Girth gears are used in a number of the world’s critical industries, including mining, cement andminerals. Usually fitted to the outside of horizontal mill, ball mill and rotary kiln.
Girth gears provide the system’s primary rotational drive and as such need to be robust, efficient and built to last. Girth gears are used in a number of mining, cement and minerals processing applications, including copper, gold, silver, platinum and iron ore production where operational downtime is not an option.
Tenfaye Girth Gear
Green Casting, Wining with Quality
Ball mill
SAG (semi autogenous grinding) mills
Mining ball mill
Cement industry
Kilns
Dryers
Coolers
Use CAE software to simulate the filling and solidification process of castings, Professional heat treatment process to improve the hardness, wear resistance and impact resistance of the girth gear. UT, MT, PT system to ensure quality.
Girth gears can be supplied individually, or as part of a fully optimised MDX mill drive package which includes:
Mill drive gearbox Girth gear
Pinions Barring drive
Auxiliary equipment including couplings, brakes, pedestal
bearings and clutches

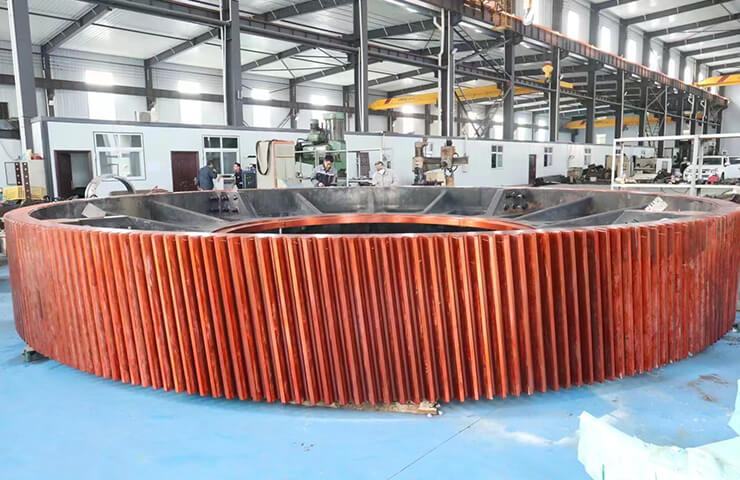

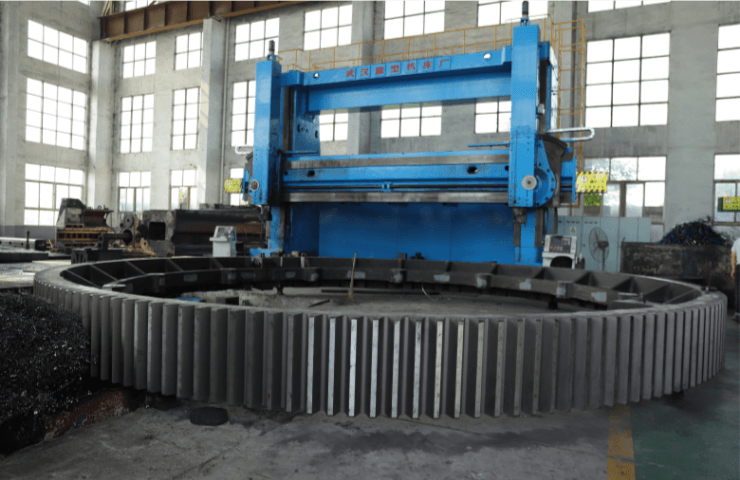

Project Name: Girth gear(Large gear ring)
Weight: 70tons
Through cooperation, Tenfaye has strictly and professionally treated large ring gear processing every parts, such as design, modeling, casting, and heat treatment, to effectively ensure quality and delivery time required by the customer, and the customer is very satisfied.

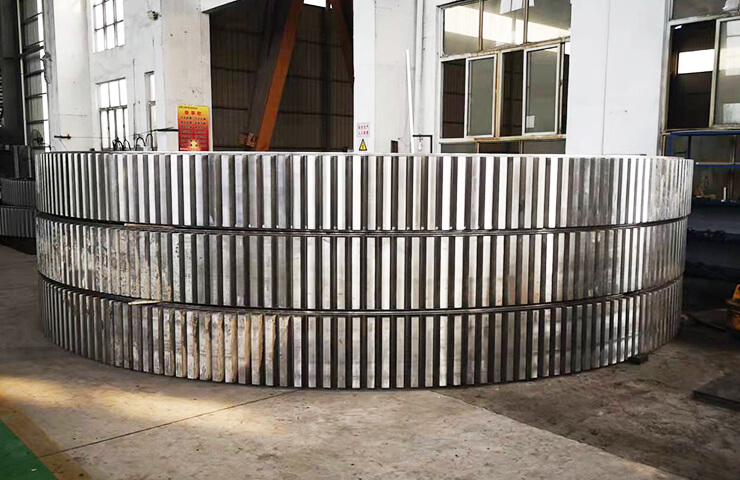

Project Name: Girth gear(Large gear ring)
Weight: 70tons
Before CITIC arranged the ring gear order in Tenfaye, they had inspected two other domestic steel casting factories. After visiting Tenfaye, the customers spoke highly of Tenfaye advanced technology, strict production operation management system and professional production capacity.

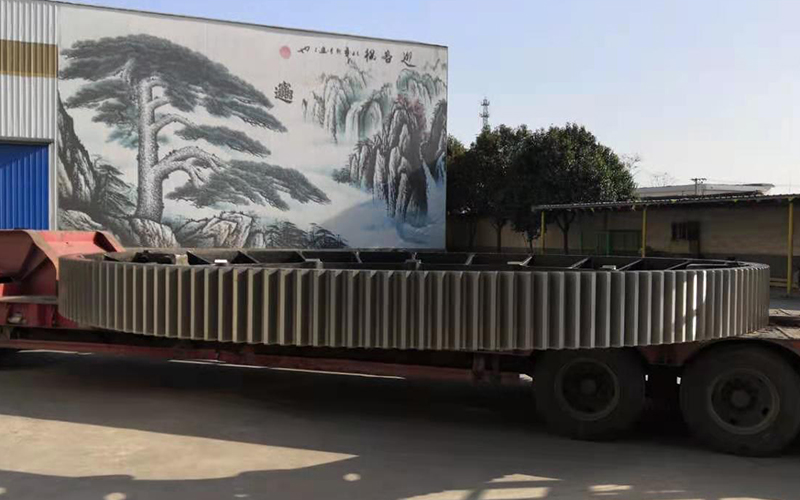

Project Name: Girth gear
Weight: 70tons
The φ8221 large gear ring was successfully shipped according to the scheduled delivery date. After the delivery, the customer was really satisfied and ordered another φ9674 large gear in Tenfaye.
Design
Simulation
& analysis
Casting
Parts
processed
Finishing
machining
Packaging
& delivery
