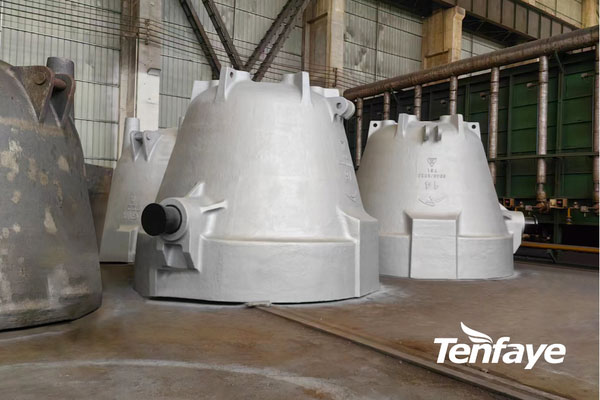

In steelmaking and non-ferrous smelting, slag pots (slag ladles) operate under extreme thermal shock and heavy loads. "Premature cracking" and "short service life" are critical headaches for plants worldwide, leading to unexpected downtime and safety risks.
As a premier heavy steel casting factory with 20 years of expertise, Tenfaye has optimized a full-process manufacturing solution to prevent slag ladle cracking and extend slag pot service life. As a trusted slag pot manufacturer, we mitigate these challenges through four core advanced methods:

1. Digital Design Defense: Magma Simulation & Structural Optimization

Cracks often trace their roots back to the initial casting design phase. Uneven wall thickness transitions and inconsistent cooling rates can lead to severe internal casting stress.

1. Comprehensive Thermal Conductivity Simulation: Tenfaye’s engineering team fully implements world-renowned Magma casting simulation software. Before the molten steel is poured, we conduct tens of thousands of digital simulations to analyze the thermal stress distribution during mold filling, solidification, and subsequent slag dumping cycles.
2. Predictive Defect Detection: The simulation system precisely forecasts "high-risk zones" prone to shrinkage cavities, porosity, and stress concentration—such as the connection between the trunnion and the pot body, as well as the bottom corners.
3. Precision Reinforcement Design: Based on the simulation data, we fine-tune the wall thickness transitions and reinforcing rib layouts. This structural optimization eliminates potential cracking risks caused by design flaws right at the source.

2. Metallurgy Defense: High-Purity Molten Steel & Precise Micro-Alloying

The purity of the material directly determines the high-temperature fatigue strength of a custom slag pot. Harmful impurities like sulfur (S) and phosphorus (P), along with excessive gas content in the molten steel, are the primary culprits behind the initiation and propagation of micro-cracks later on.

1. LF+VD Dual-Furnace Vacuum Refining: Tenfaye adheres to a strict smelting process utilizing an Electric Arc Furnace (EAF) for primary melting, followed by Ladle Furnace (LF) refining and Vacuum Degassing (VD). Under ultra-high vacuum conditions, we eliminate harmful gases such as hydrogen, oxygen, and nitrogen while compressing sulfur and phosphorus content to extremely low levels, ensuring impeccable molten steel purity.
2. Scientific Micro-Alloying Formula: Depending on the client's specific working conditions, we introduce precise amounts of micro-alloying elements like Chromium (Cr), Molybdenum (Mo), and Vanadium (V) into the carbon steel base. This significantly enhances the high-temperature creep resistance of the matrix structure and strengthens grain boundaries, providing excellent impact toughness under frequent thermal shocks and preventing the steel from becoming brittle.

 3. Thermal Treatment Defense: Stress Relief in Ultra-Large Kilns

As-cast metallurgical slag ladles accumulate immense residual stresses internally. If not thoroughly eliminated, these internal stresses will overlay with external thermal stresses during high-temperature steel mill operations, causing severe distortion or cracking within days.

1. Rigorous Normalizing and Tempering Process: Tenfaye is equipped with several ultra-large, automated, computer-controlled heat treatment furnaces. The raw casting is heated uniformly to a specific high temperature and held for an extended period for full normalization, which optimizes and refines the grain structure into uniform, fine ferrite and pearlite.
2. 100% Internal Stress Relief: This is followed by a scientific high-temperature tempering process, achieving an internal stress relief rate of over 95%. Slag pots processed through this stress-relief regimen exhibit superior anti-fatigue strength and stable mechanical performance.

4. Quality Assurance Defense: 100% International Standard NDT Inspections

A top-tier slag pot manufacturer relies on a strict self-rejection mechanism. Tenfaye guarantees that no slag ladle with internal defects leaves our facility.

1. Multi-Method Non-Destructive Testing (NDT): In strict accordance with international ASTM, EN, and ISO standards, we perform rigorous multi-stage inspections before delivery.
2. Ultrasonic Testing (UT): UT is used to scan the interior for invisible blowholes, shrinkage, or porosity, ensuring absolute internal density and structural integrity.
3. Magnetic Particle Testing (MT) & Penetrant Testing (PT): We focus heavily on critical stress-concentration zones like trunnions and radii to ensure that even the most microscopic surface or near-surface hairline cracks are detected and rejected.

If you are looking for durable, crack-resistant, and long-lasting custom steel casting slag pots (1–150 tons): Feel free to send your technical drawings and working conditions to our team. We will conduct a pre-assessment and provide a highly competitive formal quotation with a 24-hour rapid quote.
