Quick Summary: By implementing precise laser alignment (maintaining an 80%+ contact pattern), strictly controlling a 5–12 mm thermal operating clearance, applying graphite dry lubrication, and sourcing high-purity alloy steel castings, you can completely eliminate skewing wear and surface spalling—extending the service life of rotary kiln tyres (riding rings) and support rollers by more than 50%.
In the heavy-duty operation of rotary kilns across cement, mining, and chemical industries, rotary kiln tyres (riding rings) and support roller assemblies are critical steel castings that dictate continuous plant operation. As core load-bearing components supporting hundreds of tons of kiln weight under high-temperature rotation, they endure extreme stress and thermal radiation. If premature wear or material defects lead to single-sided skewing wear, surface spalling, or cracking, it can trigger unscheduled shutdowns and result in massive financial losses from lost production.
Extending the service life of kiln tyres and support rollers by 50% is entirely achievable through systematic asset management and preventive maintenance. Below are four proven engineering methods to maximize their operational lifespan.

1. Maintain Precise Axis Alignment to Eliminate Edge Stress Concentration

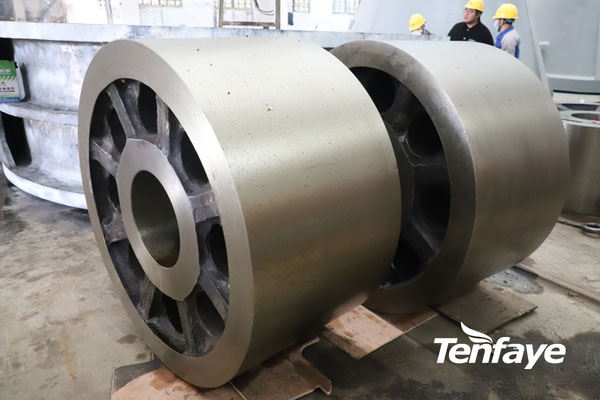

• Dynamic Laser Alignment: Perform periodic alignment checks on the kiln axis using high-precision laser alignment tools. Even a few millimeters of support roller skewing can generate massive shear stress between the tyre and roller, causing severe flange and surface binding wear.
• Ensure an 80%+ Contact Pattern: Fine-tune the support roller bearing bases to consistently maintain the actual contact patch between the tyre and roller at 70%–80% or higher. This evenly distributes immense compressive stress, preventing surface pitting and heavy spalling.

2. Strictly Control Thermal Operating Clearance to Prevent "Pinching" Damage

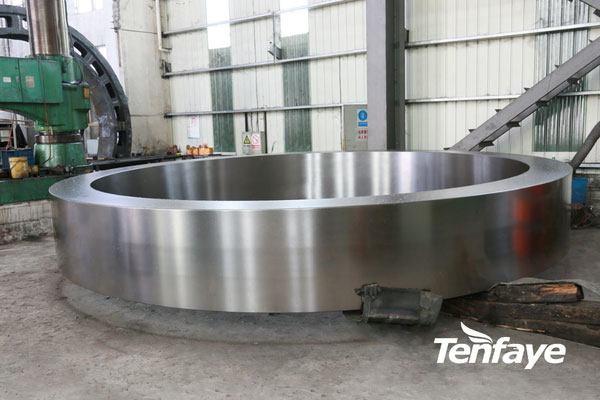

• Maintain a 5–12 mm Dynamic Clearance: At rated operating temperatures, the hot clearance between the kiln tyre ID and the shell pads must be strictly controlled within 5–12 mm.
• Prevent Abnormal Local Thermal Expansion: Excessive clearance increases kiln shell ovality and leads to severe wear between the tyre inner diameter and pads. Conversely, insufficient clearance causes the expanding kiln shell to "pinch" or constrict the tyre, potentially cracking the heavy steel casting.

3. Apply Scientific Lubrication and Control Surface Micro-Cracks

• High-Temperature Solid Lubrication for Internal Surfaces: Periodically apply graphite powder or high-purity copper-based lubricant between the tyre inner diameter and shell pads. Never use sticky, heavy grease that attracts dust and creates abrasive wear slurry.
• Dry Graphite Lubrication for Contact Faces: Install graphite lubrication blocks on the contact faces of the support rollers and tyres for dry surface protection. Conduct regular Magnetic Particle Testing (MT) to catch early micro-pitting, grinding it out promptly to prevent cracks from propagating inward.

4. Ensure a Proper Hardness Gradient and Source High-Purity Steel Castings

• Establish an Optimal Hardness Step: Industry standards require the surface hardness of the support roller to be 20–30 HB higher than that of the tyre. This ensures the smaller, easier-to-replace component bears the majority of wear, preventing both costly parts from failing simultaneously.
• Control Casting Quality at the Source: Select high-toughness alloy cast steel such as ZG42CrMo. Apply deep Quenching & Tempering (Q&T) heat treatment to achieve a uniform tempered sorbite microstructure. Pair this with 100% Non-Destructive Testing (UT/MT) to eliminate internal porosity, slag inclusions, and stress concentration points at the foundry level.

Extending the operational lifespan of heavy rotary kiln drive components requires both meticulous on-site maintenance and superior metallurgical quality. Establishing complete NDT and alignment records while regularly monitoring hot operating parameters will deliver substantial cost savings and efficiency gains for your plant.
