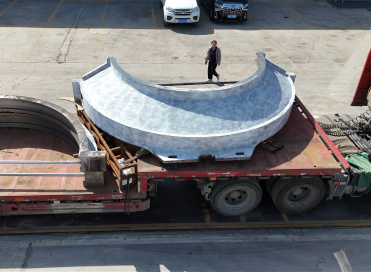

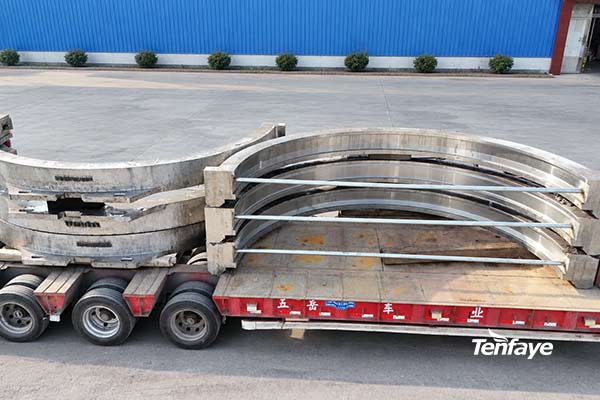

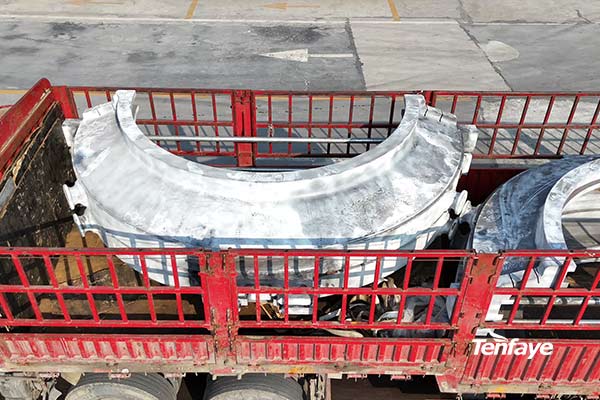

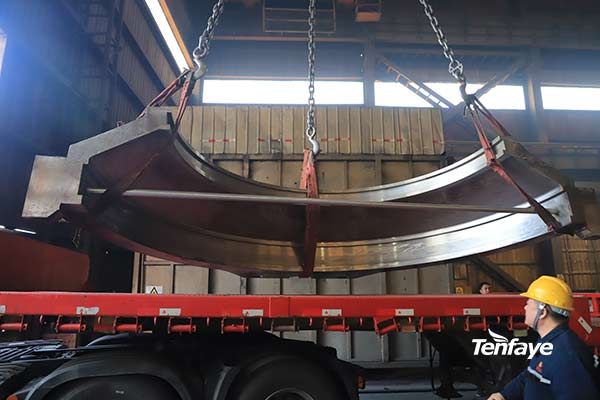

Steam Turbine Partition Sleeve

Weight>1 Ton

MaterialZG230-450, ZG270-500, ZG310-570, ZG340-640 and so on

ApplicationSteam Power Plants,Industrial Steam Turbines,Power Generation Equipment

CustomizableYes, according to customer's drawings

+8618037881433 info@tenfaye.com Chat online

Tenfaye manufactures steam turbine partition sleeves and steam turbine diaphragm sleeves from customer drawings and specifications. As a large cast steel manufacturer, we provide complete production from casting and heat treatment to machining and inspection.

The partition sleeve is a critical stationary component used in steam turbines. We manufacture large and complex cast steel turbine components according to the required dimensions, material grade and technical specifications, with inspection and quality documentation available for demanding power generation applications.

For steam turbine partition sleeve replacement, OEM production or custom manufacturing, customers can provide drawings, dimensions or technical requirements for review.

Features & advantages Production process View more products Get a Quote

Features & advantages

1. Full-Ring Casting for Large-Diameter Components
The steam turbine partition sleeve features a large diameter and relatively thin wall, making the casting process more demanding than conventional steel castings. Tenfaye applies a full-ring casting process developed from our experience in manufacturing large girth gears, helping improve structural consistency and reduce dimensional deviations caused by segmented casting.
2. Controlled Deformation During Heat Treatment
Thin-wall, large-diameter turbine components are particularly sensitive to deformation during heat treatment. Tenfaye uses dedicated heat treatment procedures, including full-ring heat treatment, to reduce deformation and maintain dimensional stability throughout the manufacturing process.
3. Optimized Foundry Process and Materials
The casting process is developed according to the component's service conditions and inspection requirements. High-quality molding materials are selected for critical areas, including imported chromite sand, to support surface quality and casting stability. Process simulation and production experience are combined to optimize the casting design and process parameters before production.
4. Precision Machining for Large Ring Components

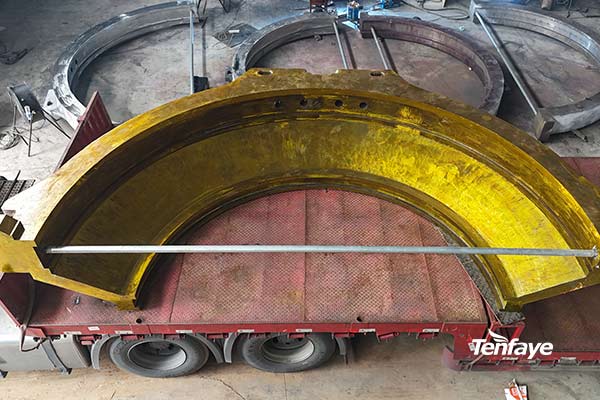

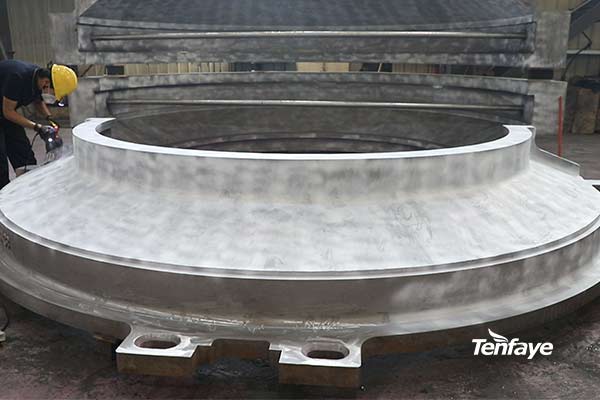

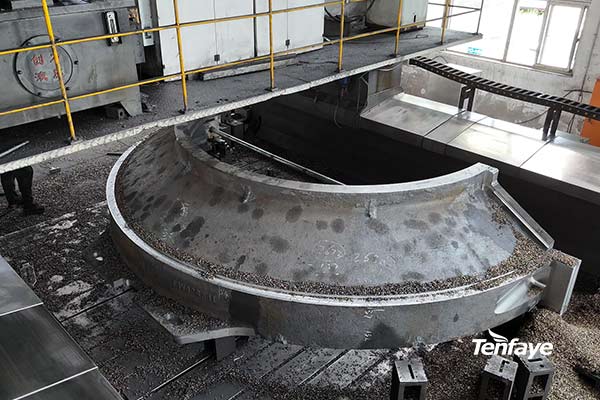

After heat treatment, the partition sleeve undergoes controlled machining procedures from turning to boring and milling. Dedicated machining processes are established for different operations, with experienced personnel responsible for dimensional control. Large vertical lathes and boring and milling machines are available for machining large-diameter components.
5. Suitable for Multi-Model and Batch Production
Steam turbine components often involve multiple models and repeated production requirements. Tenfaye has established dedicated production and machining resources for turbine components, supporting the manufacture of different sizes and specifications while maintaining consistent process control across batch orders.
6. Integrated Manufacturing and Inspection
Tenfaye provides an integrated production process covering casting, heat treatment, machining, finishing and inspection. This reduces the need for multiple external processing stages and allows dimensional and quality control to be followed throughout the manufacturing process.

Send Us Your Drawing

Looking for a steam turbine partition sleeve for a new project or replacement? Send us your drawing, dimensions or technical specifications. Our team can review the requirements and provide a manufacturing solution based on your component specifications.

FAQ

Q1: Can Tenfaye manufacture steam turbine partition sleeves according to customer drawings?
Yes. We manufacture partition sleeves according to customer drawings, dimensions, material requirements and technical specifications. Custom production is available for OEM and replacement applications.

Q2: What information is required for a quotation?
A product drawing is preferred. If a drawing is not available, you can provide dimensions, material requirements, weight, application details or photos of the existing component for an initial assessment.
