In heavy-duty, high-torque transmission systems such as mining ball mills, heavy crushers, and large-scale cement rotary kilns, heavy-duty helical girth gears have progressively replaced straight spur gears. This shift is driven by their superior smooth transmission, higher contact ratio (overlap degree), and minimized shock and vibration. However, due to the specific helix angle, the structure of a helical gear is significantly more complex than that of a spur gear. This places much higher demands on a steel foundry's casting technology and machining precision.

With over 20 years of expertise in large-scale steel casting, Tenfaye has conducted deep technical research into the metallurgy and production of heavy helical gears, providing premium-quality replacement girth gears for global heavy industry clients.

Three Major Industry Pain Points in Helical Girth Gear Casting & Machining

1. Internal Porosity & Shrinkage in the Gear Tooth Thermal Centers

The intersection zones between the wheel hub, spokes, and the gear ring are inherently thick. During the pouring and cooling stages, if solidification in these "thermal centers" is uneven, microscopic gas pores, shrinkage cavities, or localized looseness can easily form inside the metal. These hidden sub-surface flaws inevitably lead to severe fatigue fractures when exposed to high cyclic stress during operation.

2. Extreme Difficulty in Helix Angle Deformation Control

Large-scale steel castings undergo immense shrinkage stress as they transition from liquid to solid phase. Due to the asymmetrical angles of the gear teeth, the uneven contraction forces can easily cause micro-distortion, warping, or out-of-roundness (excessive ellipticity) in the gear ring, which can instantly lead to the scrapping of the entire component.

3. Ultra-High Requirements for Tooth Surface Hardness Uniformity and Finish Precision

Helical gears generate substantial axial forces during transmission. If the casting exhibits material anisotropy or uneven hardness across the teeth, it triggers localized stress concentration during the meshing process between the pinion and the girth gear, resulting in severe gear tooth pitting or premature abrasive wear.

Engineered Solutions by Tenfaye

1. Huazhu CAE Digital Simulation Technology

Prior to pouring the molten steel, Tenfaye utilizes 100% advanced CAE software to simulate the 3D fluid dynamics of mold-filling and the thermal solidification profile of the helical gear. By precisely configuring the geometry and placement of risers and chills, we achieve optimized directional solidification (sequential solidification). This effectively drives gases and impurities into the risers, eliminating internal shrinkage and porosity defects at their root.

2. Advanced EAF (Electric Arc Furnace) + LF (Ladle Furnace) Duplex Refining Process

Tenfaye utilizes an Electric Arc Furnace for primary melting, followed by secondary refining in a Ladle Furnace for deep degassing, desulfurization, and non-metallic inclusion removal. The resulting ultra-pure molten steel exhibits exceptional impact toughness and superior thermal cracking resistance, ensuring fine grain refinement and a highly homogeneous internal microstructure for the gear blanks.

3. Large-Scale CNC Vertical Lathes & Precision Gear Hobbing

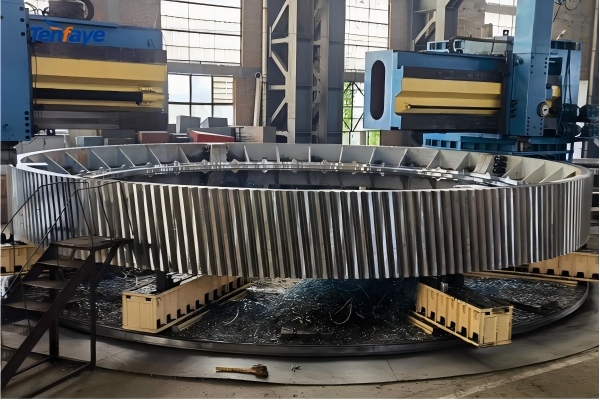

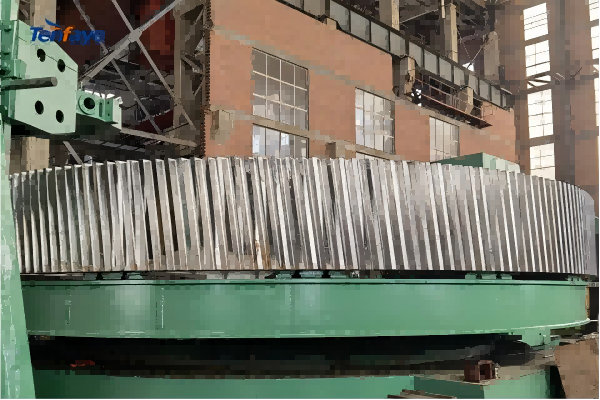

Our facility is equipped with multiple heavy-duty CNC vertical boring mills and heavy-duty CNC gear hobbing machines. Employing single-setup machining technology (integrated clamping), we guarantee strict concentricity between the gear's flange mating surface and the tooth tip circle. Coupled with a rigorous helix angle inspection and compensation system, machining tolerances are held to the micron level, ensuring optimal backlash and perfect tooth-contact patterns.

4.Comprehensive NDT Testing for Zero-Defect Delivery

As a trusted, long-term supply chain partner for international engineering corporations like ThyssenKrupp, Tenfaye implements stringent quality control protocols on every heavy helical gear produced. Through 100% Ultrasonic Testing (UT) and Magnetic Particle Testing (MT), we ensure that both the internal structure and the surface of the castings are entirely free of linear defects, fully complying with ASTM, ISO, and DIN international quality standards.
Whether you are executing a technical upgrade for a SAG/semi-autogenous mill or require a replacement drive system for a cement rotary kiln, Tenfaye stands out as a premier heavy-duty steel casting factory and professional OEM provider of custom girth gears. We specialize in producing high-performance helical gears ranging from 1 to 150 tons, along with complete large-scale drive assemblies and other heavy steel casting components tailored exactly to your engineering drawings.

We welcome mining and cement industry experts worldwide to contact us and discuss mill components, kiln maintenance spares, and heavy steel casting solutions!
