I. Core Applications of Rotary Kiln Girth Gears: Critical Components of the Drive System

In large-scale industrial sites such as cement production lines, metallurgical rotary kilns, and chemical roasting systems, the rotary kiln girth gear plays a vital role. As the core driving mechanism of the entire heavy equipment, its main applications are reflected in the following three key aspects:

1. Core Torque Transmission for Smooth and Stable Rotation

• Bearing Hundred-Ton Loads: The rotary kiln has a massive volume, containing hundreds of tons of materials internally, and operates continuously under high temperatures ranging from several hundred to over a thousand degrees Celsius.
• Smooth Torque Output: Fixed to the outside of the kiln shell, the large girth gear meshes precisely with the pinion to smoothly transfer the massive torque from the reducer to the kiln body, ensuring the rotary kiln rotates continuously at a stable, low speed.

2. Maintaining Operational Stability to Ensure Uniform Material Heating

• Determining Kiln Vibration Levels: Materials inside the rotary kiln require the kiln body to rotate to achieve uniform physical or chemical reactions. The running stability of the girth gear drive directly determines whether there is vibration during the operation of the entire kiln body.
• Guaranteeing Final Clinker Quality: If the machining precision of the large girth gear is insufficient, or if severe vibration and judder occur, it will lead to uneven heating of the materials inside the kiln, which directly affects the quality of the clinker and the output of the entire production line.

3. Enduring Extreme and Severe Working Conditions as a Wear-Resistant Barrier

• Coping with 24-Hour Continuous Loads: Rotary kilns typically operate 24 hours a day continuously, meaning the girth gear must withstand alternating loads of dozens or even hundreds of tons.
• Resisting Dust and High-Temperature Thermal Radiation: The girth gear is permanently exposed to harsh environments with heavy dust, high wear, and intense thermal radiation from the kiln shell. Therefore, it is the most critical, complexly stressed, and highly wear-resistant consumable component within the rotary kiln drive system.

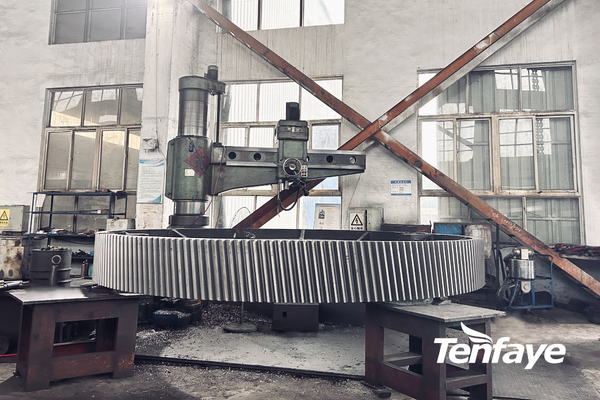

II. Casting Process of Tenfaye Rotary Kiln Girth Gears: 1-150 Ton Heavy Sand Casting

To meet the high-volume and high-strength requirements of rotary kiln gears, Tenfaye completely rejects ordinary casting methods that cannot support ultra-large models. Instead, we fully adopt a manufacturing process that combines heavy sand casting with cutting-edge heat treatment.

1. Advanced Computer Simulation (CAE Casting Simulation)

Before formal pouring, the Tenfaye engineering team utilizes computer software to perform mechanical and thermal simulations of the gear casting process. By simulating the flow and cooling solidification of the molten steel, we predict and eliminate potential defects such as shrinkage cavities, porosity, and cracks in advance, guaranteeing internal density right from the source.

2. Selection of High-Quality Raw Materials and Smelting

We select high-purity carbon steel or low-alloy steel (such as ZG45, ZG35CrMo, ZG42CrMo, and other materials) as the core material grades. During the smelting process, the content of harmful impurities such as sulfur (S) and phosphorus (P) is strictly controlled to ensure the purity of the molten steel.

3. Specialized Heat Treatment to Optimize Structure

After casting, the rough gear blanks must undergo a series of rigorous heat treatment processes such as Normalizing & Tempering. This completely eliminates the internal stress generated during the casting process and greatly refines the grain structure, providing the large-scale steel castings with extremely high fatigue strength and a tough exterior, preventing tooth breakage or cracking during long-term high-torque operation.

III. Five Key Advantages of Tenfaye Girth Gears: Why Global Buyers Choose Us?

With complete hardware facilities and deep technical expertise, Tenfaye possesses irreplaceable strengths in manufacturing large girth gears:

1. 1-150 Ton Single-Piece Production Capacity

Tenfaye boasts an ultra-large production capacity for single-piece heavy steel castings ranging from 1 to 150 tons. Whether for small-to-medium rotary kiln gears or ultra-large drive gears for massive mining and cement plants, we have an adequate heavy-duty workshop foundation to undertake large-scale orders.

2. Maximum Machining Diameter Up to 15 Meters

The factory is equipped with ultra-large CNC vertical lathes and heavy-duty gear hobbing machines, enabling a maximum machining diameter for gears up to 15 meters and a maximum face width up to 2 meters. This processing limit is sufficient to cover the component specifications for more than 90% of the world's ultra-large rotary kilns and ball mills.

3. Strict Implementation of DIN 3962 Class 6 Precision Standard

The machining precision of our gears strictly complies with the DIN 3962 standard, achieving Class 6 accuracy. This far exceeds the conventional Class 10 industry standard. High-precision gear profile machining significantly reduces the backlash between the large girth gear and the pinion, minimizing operational vibration, protecting the gear reducer, and reducing overall operating noise to the lowest level.

4. Optimal Hardness Matching and Wear Resistance

To extend the service life of the entire drive system, Tenfaye precisely controls the surface hardness of the large girth gear within 320-360 BHN. Paired with the high-hardness pinions (57-62 HRC) we provide, it forms a scientific "hard-to-soft" friction pair, achieving highly synchronized operation, substantially reducing wear, and lowering post-maintenance costs.

5. 100% Non-Destructive Testing (Zero-Defect Delivery)

International ocean freight is costly, and any product with internal defects is a disaster for overseas customers. Tenfaye promises that all girth gears must pass 100% Non-Destructive Testing, including Ultrasonic Testing (UT) and Magnetic Particle Testing (MT), before international shipping. We use data to ensure that every single gear delivered to the customer's site is a "zero internal defect" industrial product.

If you need to source a large girth gear for your rotary kiln project, welcome to contact us. We will provide you with a factory-direct quotation within 24 hours!
